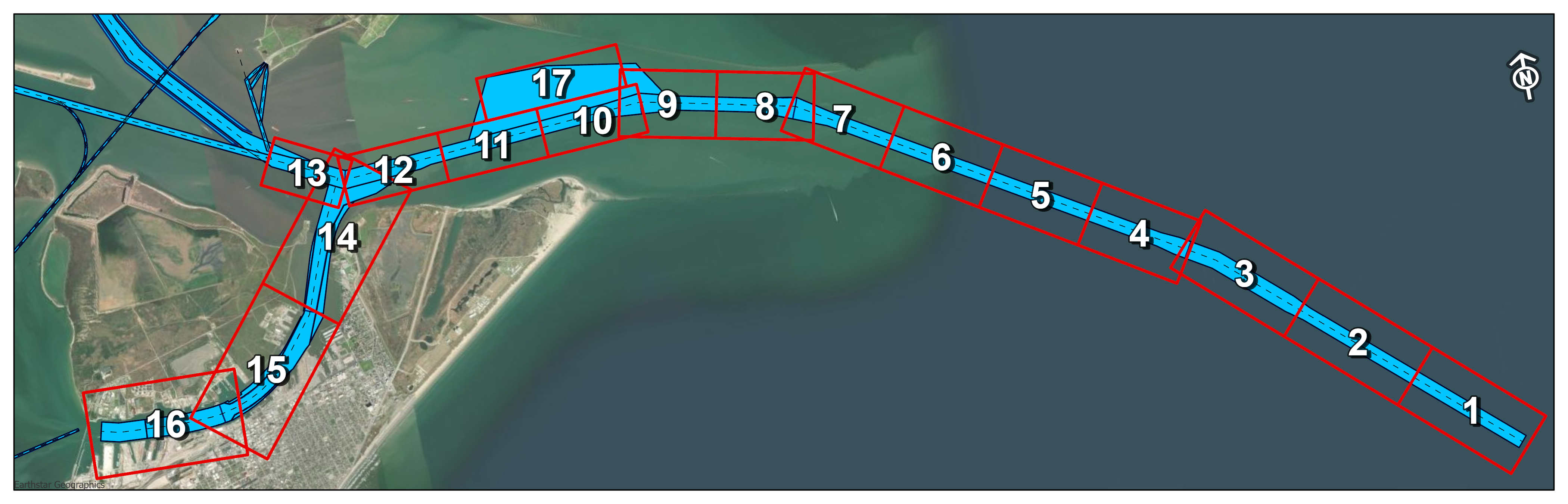

Galveston Harbor Index & Maps

PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1 - 3 Extended Entrance Channel 76+000 to 55+840.58 06/15/21 Survey Map XYZ
4 - 7 Entrance Channel 55+840.58 to 30+515.474 06/14/21; 07/12,15,20/21 Survey Map XYZ
8 - 9 Outer Bar Channel 30+515.474 to 21+752.821 04/08/21 Survey Map XYZ
10 - 12 Inner Bar Channel 21+752.821 to 4+490.072 07/07/21; 07/08/21 Survey Map XYZ
13 Bolivar Roads Channel 4+490.12 to 0+000 07/08/21 Survey Map XYZ
 14 Bolivar Roads to Exxon Oil Dock 0+000 to 7+879.53

01/08/21; 04/25/21; 07/26/21

 Survey Map XYZ
15 Exxon Oil Dock to Todd Shipyards 7+879.53 to 15+600 04/25/21; 07/26/21 Survey Map XYZ
16 Todd Shipyards to Pier B (43rd Street) 15+600 to 22+571 05/18/21; 07/03/21 Survey Map XYZ
17 Anchorage Basin "A" 23+200 to 12+200 04/15/20; 06/17/21 Survey Map XYZ
18 Anchorage Basin "B" 14+118.08 to 4+490.12 08/20/19 Survey Map XYZ

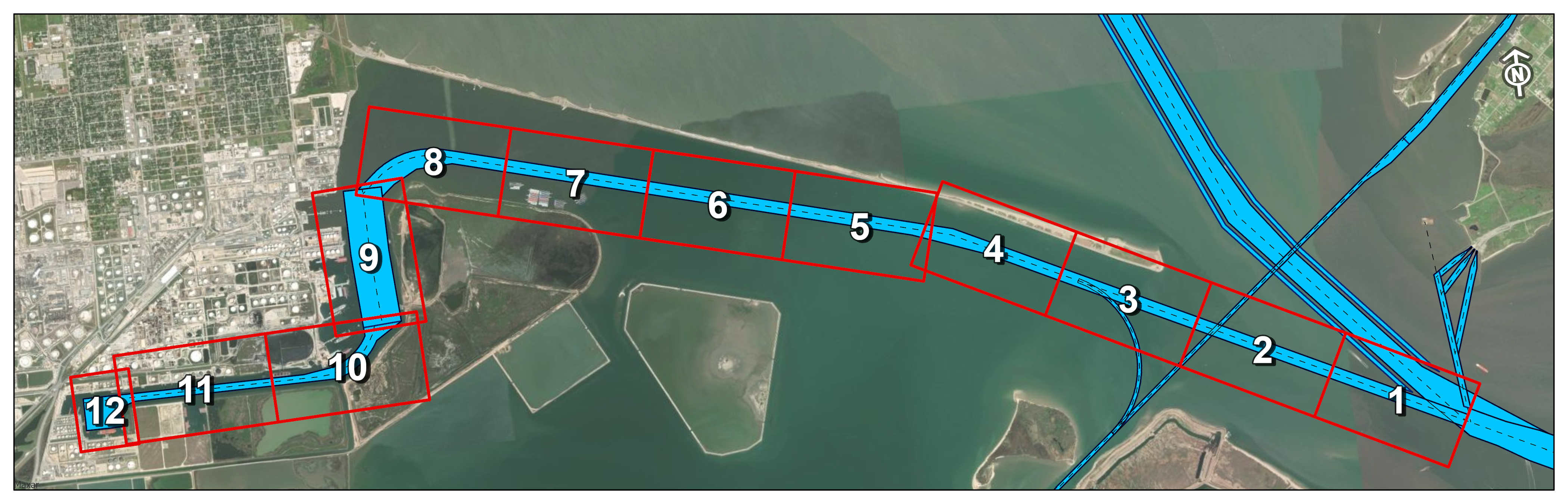

Texas City Index & Maps

PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1 - 8 Bolivar Roads to Turning Basin 0+000 to 36+200.7

06/04,10/21; 07/27/21

 Survey Map XYZ
9 Texas City Turning Basin 0+00 to 42+86 06/10/21 Survey Map XYZ
10 - 11 Industrial Canal 0+00 to 88+13.76 05/04/21 Survey Map XYZ
12 Industrial Turning Basin 88+13.76 to 99+63.76 05/04/21 Survey Map XYZ


Houston Ship Channel Map Index

/

HOUSTON SHIP CHANNEL
PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1 - 10 Bolivar Roads to Red Fish Light 1 138+369 to 78+844 06/16/21; 07/14,15,19,20,21,27/21 Survey Map XYZ
11 - 19 Red Fish Light 1 to Beacon 76 (Turn) 78+844 to 30+090

09/16,26/20; 12/17,21,25/20; 01/26/21; 04/28/21; 07/02/21

 Survey Map XYZ
20 - 24 Beacon 76 to Lower End Morgans Point Cut 30+090 to -0+003.944 (Bay)

05/13/21

 Survey Map XYZ
25 - 29 Lower End Morgans Point to Alexander Island 0+000 to 295+00

05/03/21; 06/02,03,04/21

 Survey Map XYZ
30 - 34 Alexander Island to Carpenter Bayou 295+00 to 520+00 06/24/21 Survey Map XYZ
35 - 37 Carpenters Bayou to Boggy Bayou 520+00 to 684+03.19 06/03/21 Survey Map XYZ
38 - 40 Boggy Bayou to Greens Bayou 684+03.19 to 833+05.17 04/28/21 Survey Map XYZ
41 - 42 Greens Bayou to Hunting Bayou (Upper End) 833+05 to 925+25 06/23/21 Survey Map XYZ
44 - 46 Hunting Bayou to Sims Bayou (Southern Pacific Slip) 925+25 to 1110+77.54

02/26/21; 06/23/21

 Survey Map XYZ
47 Turning Point at Clinton Island 1060+25 to 1076+75 03/20/18 Survey Map XYZ
48 - 50 Sims Bayou to Houston Ship Channel Turning Basin 1110+77.54 to 1266+48.72

8/11/20; 1/22/21; 2/5,13/21;

03/08/21

 Survey Map XYZ
51 Turning Point at Brady Island 1190+00 to 1201+00 02/05/21 Survey Map XYZ
52 Houston Ship Channel Turning Basin 0+00 to 30+95.05 03/08/21 Survey Map XYZ
53 Upper Turning Basin 0+32.59 to 10+00 03/08/21 Survey Map XYZ

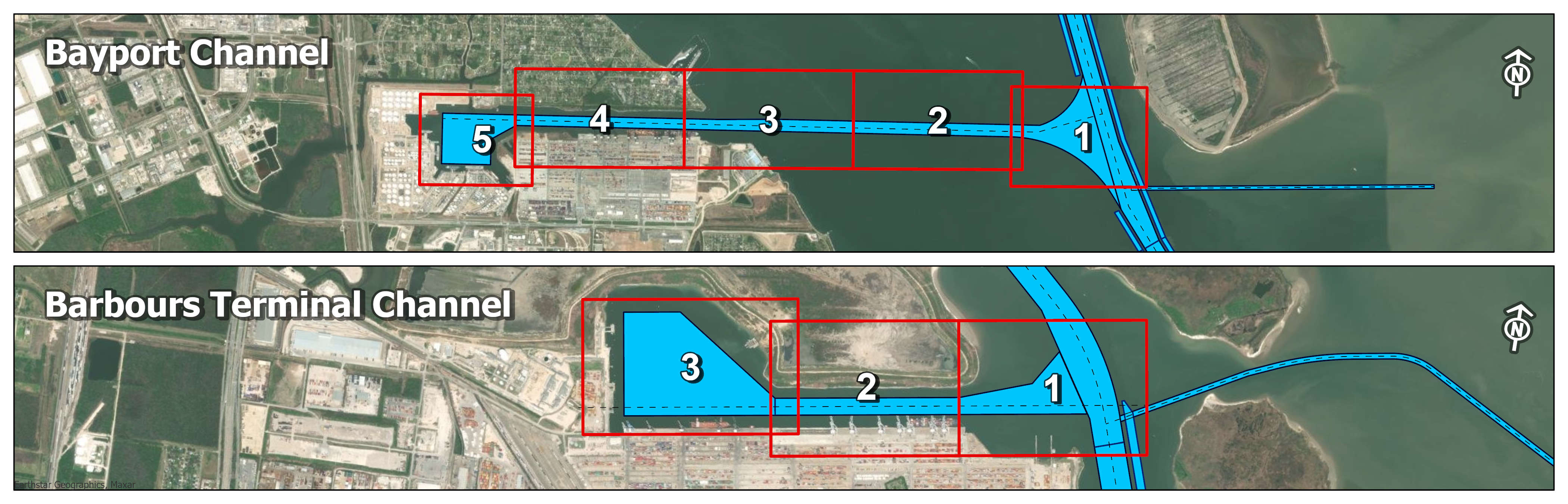

Bayport & Barbours Channels

BAYPORT
PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1 Flare at Houston Ship Channel 239+04.32 to 211+15.55 07/30/21 Survey Map XYZ
2 - 3 Entrance Channel 211+15.55 to 49+61.30 08/04/21 Survey Map XYZ
4 - 5 Turning Basin 49+61.30 to 25+58.69 05/11/21 Survey Map XYZ
BARBOURS
PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1 Flare at Houston Ship Channel 11+06 to 33+05 06/16/21 Survey Map XYZ
2 Entrance Channel 33+05 to 64+61 06/16/21 Survey Map XYZ
3 Turning Basin 64+61 to 91+98 06/16/21 Survey Map XYZ

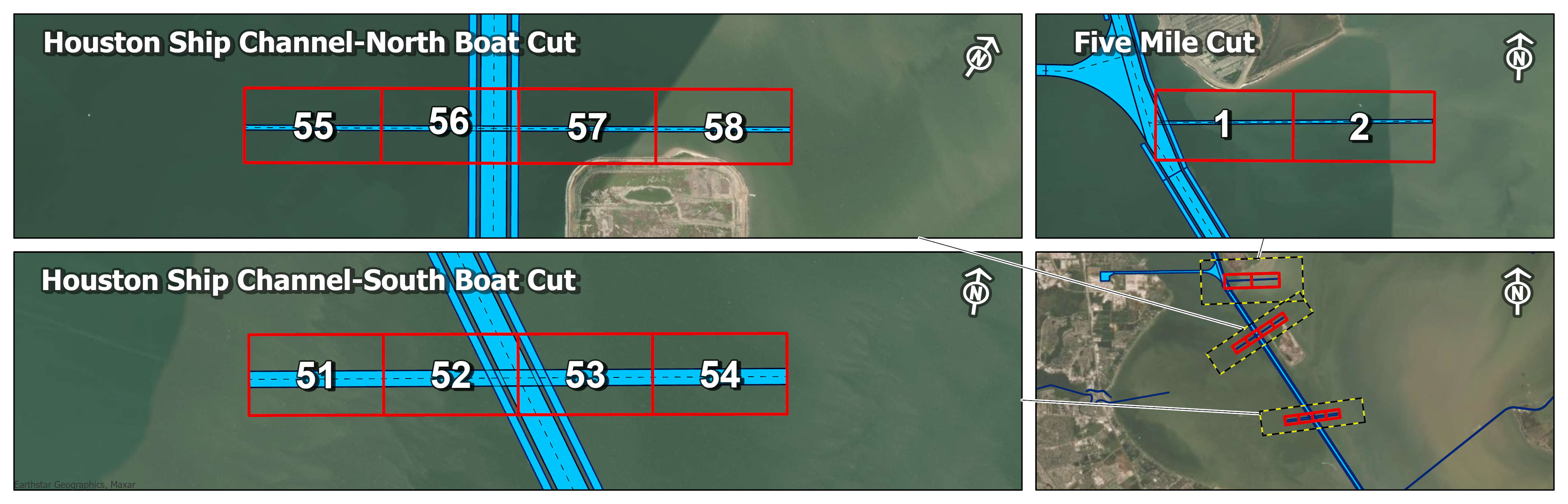

SOUTH/NORTH BOAT CUT
PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1-4 South Boat Cut 4+00 to 50+00 04/03/20 Survey Map XYZ
4-8 North Boat Cut -50+00 to 60+00 06/24/21 Survey Map XYZ


FIVE MILE CUT
PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1-2 Five Mile Cut 0+00 to 100+00 04/03/20 Survey Map XYZ

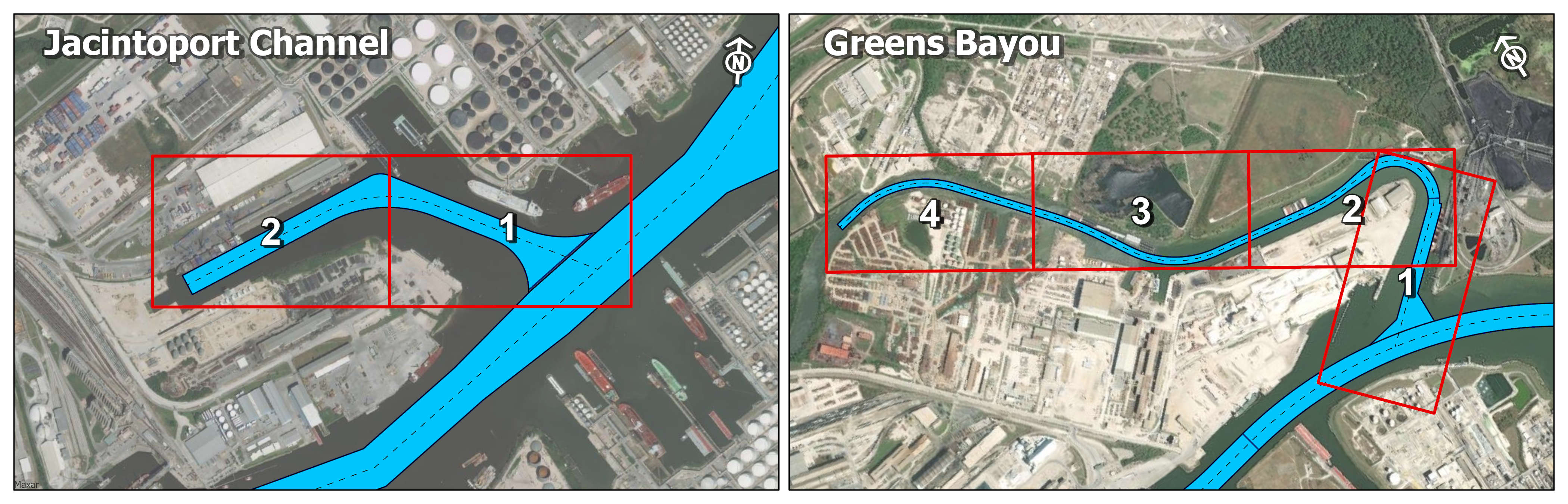

Jacintoport Channel & Greens Bayou

JACINTOPORT
PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1-2 Jacintoport Channel 1+66.71 to 41+18 03/31/20 Survey Map

XYZ


GREENS BAYOU
PAGES CHANNEL Station to Station Survey Date(s) PDF Map  XYZ Data
1 Entrance to Greens Bayou to First Bend Above Mouth 0+00 to 19+39.91 03/28/20 Survey Map XYZ
2-4 First Bend to Parker Brothers Slip 19+39.91 to 108 + 24.464 03/28/20 Survey Map XYZ
